Split Ultrasonic Liquid Level Meter
video

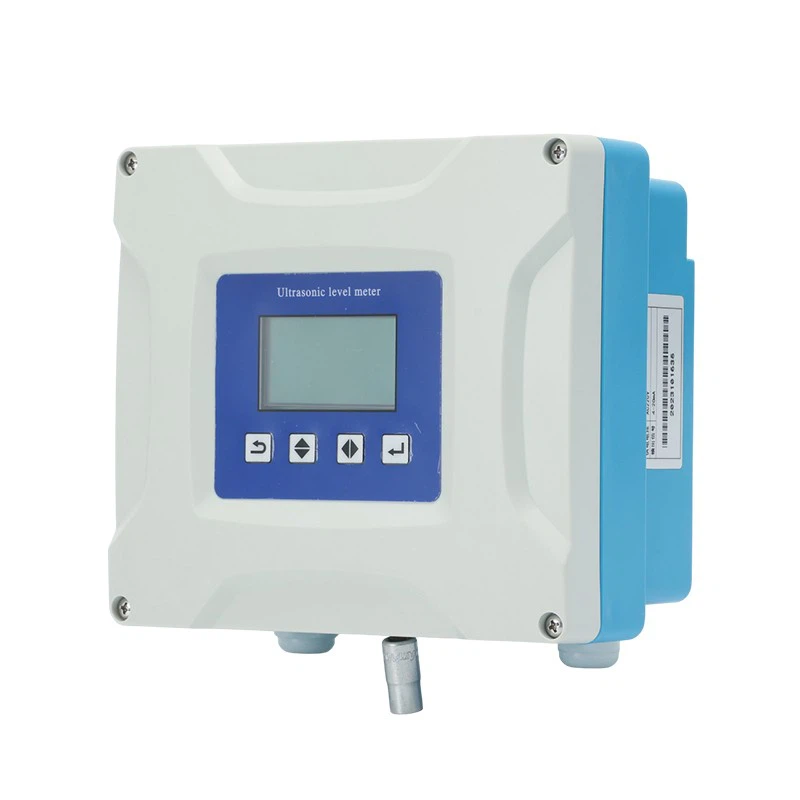

Split Ultrasonic Liquid Level Meter

Split Ultrasonic Liquid Level Meter

Range:0-20m (large range can be customized, blind area: 0.35m~0.5m);
Distance accuracy:0.5%;
Power supply voltage:DC12V, DC24V/AC220V built-in lightning protection device;
Host display:LCD display (resolution 1mm);
Products Description



The split ultrasonic level meter is a liquid level measuring instrument that can install the sensor and converter separately. The sensor sends the ultrasonic signal to the liquid surface, and the converter receives the returned sound wave and determines the liquid level through program conversion. This design makes the equipment more flexible during use. Different sensors and converters can be selected as needed, and different installation methods can be used to adapt to different liquid level measurement needs. In addition, the split ultrasonic level meter has the advantages of high reliability, high accuracy, wide measurement range, and fast response speed. It is widely used in liquid level control and monitoring in chemical, electric power, water treatment, environmental protection and other industries.



-05



Technical Parameters

Range: 0-20m (large range can be customized, blind area: 0.35m~0.5m); Analog output: 4~20mA (optional 1-4 relay output);
Distance accuracy: 0.5%; Sensor withstand voltage: <0.1MPa; IP65;
Power supply voltage: DC12V, DC24V/AC220V built-in lightning protection device; Digital output: RS485, Modbus protocol or customized protocol;
Host display: LCD display (resolution 1mm); Ambient temperature: -40℃ ~ 80℃;
1111

1



-11

-17

22
23
24
25



-23

-26
