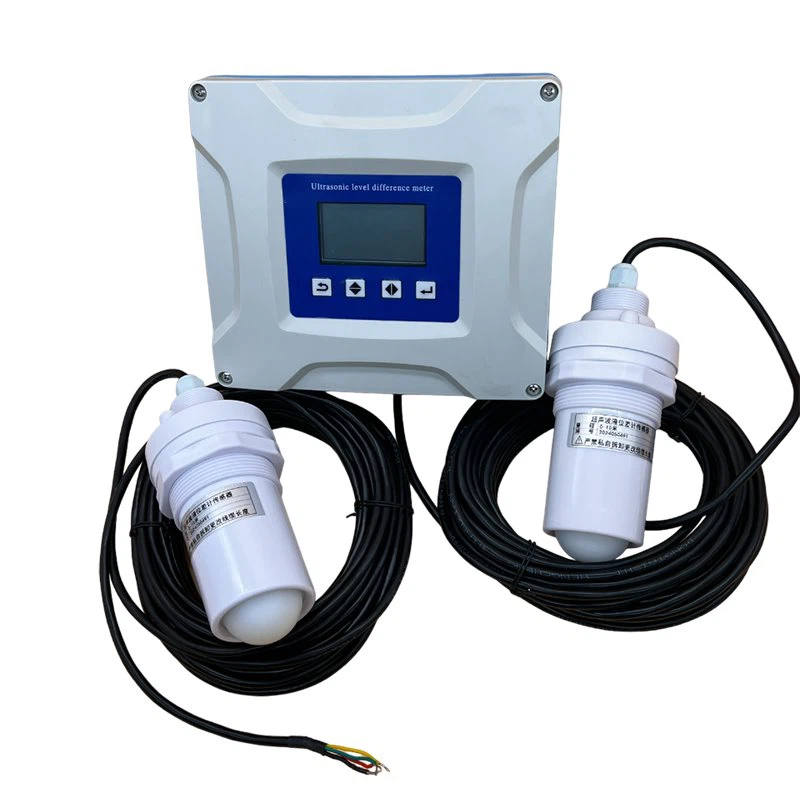

Ultrasonic Liquid Level Difference Meter - Overview
An ultrasonic level differential meter is an instrument used to measure the difference between two liquid levels in a liquid container. It is based on ultrasonic technology, which measures the level difference by transmitting and receiving ultrasonic signals.
Product Specification
We offer the following Specifications:
|
One three/four wire system |
|
|
Measuring range |
5m, 8m, 10m, 12m, 15m (optional when ordering) |
|
Blind spot |
＜0.4-0.6m (different display range) |
|
Error |
±0.2%F.S |
|
Show |
OLED Chinese and English menu (with self-luminous) |
|
Minimum display resolution |
1mm |
|
Keyboard |
Three-digit touch key |
|
Working frequency |
20～350KHz (different depending on model specifications) |
|
Optional power supply |
12-28VDC or 220VAC |
|
Output mode (optional) |
4～20mA RL>600Ω (standard configuration) 1～5V1～10V RS485 (optional Bluetooth conversion accessories) GPRS 3 NPN (can be configured as PP pulse output) 2 relays (AC: 5A 250V DC: 10A 24V) |
|
Instrument material |
ABS engineering plastics |
|
Dimensions |
Φ92mm×198mm×M60 |
|
Installation interface |
M60X2 or ￠61MM round hole (with big nut) |
|
Electrical interface |
M20X1.5 (two groups) |
|
Incoming cable |
There are wiring terminals user-defined |
|
Working environment |
Temperature and pressure |
|
Protection level |
IP65 (higher protection level can be customized) |
|
Explosion-proof grade |
EXia IIBT4Gb (Order to buy) |
Cost-Effective: Ultrasonic level meters are generally more affordable than radar meters, making them a popular choice for budget-conscious applications.
Easy Installation: These meters are relatively easy to install and configure, requiring minimal maintenance.
Suitable for Clean Liquids: Ultrasonic meters work well with clean liquids and can be used in applications where the liquid is free from foam, vapor, or heavy dust.
Application of Ultrasonic Liquid Level Difference Meter
Environmental protection field:
Sewage treatment, sedimentation tank liquid level measurement.
Chemical industry:
Liquid level monitoring of chemical storage tanks and reactors.
Food and Beverage Industry:
Brewing, dairy processing, liquid food storage.
Energy sector:
Oil, natural gas, liquid and liquid fuel storage in power equipment.
Design Confirmation and Quotation: Our process begins when a customer sends us specific product details such as the specifications and dimensions of the product they want. We will provide a quote for the entire process according to customer requirements.
Sample Making: After agreeing the quotation, Our designers will make samples for you in the shortest time, after the samples are finished, we can send them to our customers by post for testing, or provide you some pictures for your reference.
Mass Production & QC: Once the samples are finalized, the design will be forwarded to our factory to start mass production. Our dedicated quality control team monitors every step of the process to ensure that every product meets our standards before it leaves the factory.
Delivery: Once the order has been manufactured, we will arrange for delivery of the product to the customer, thus completing the process.
