Products Description

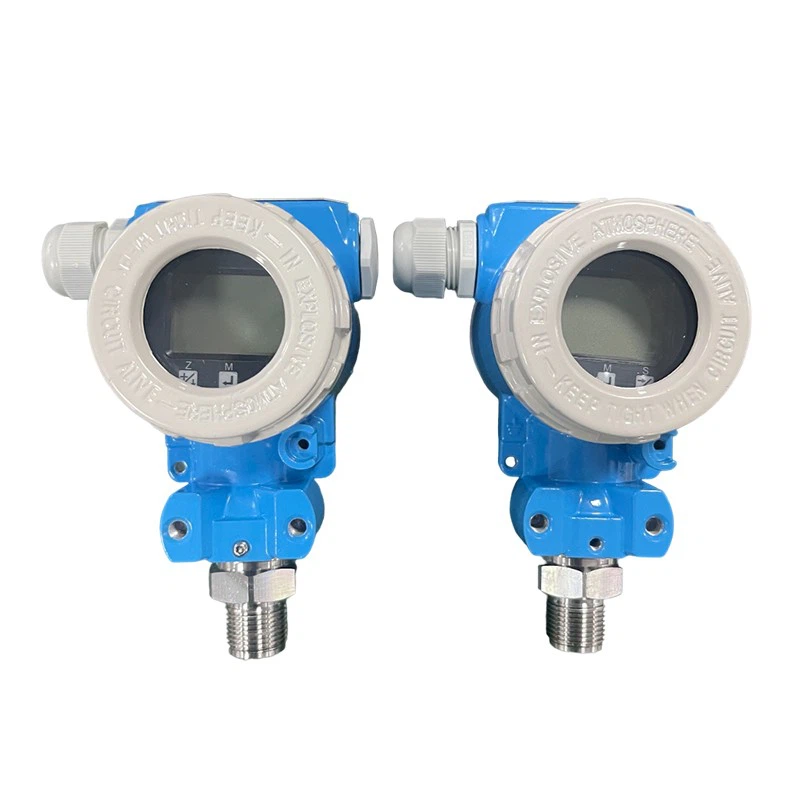

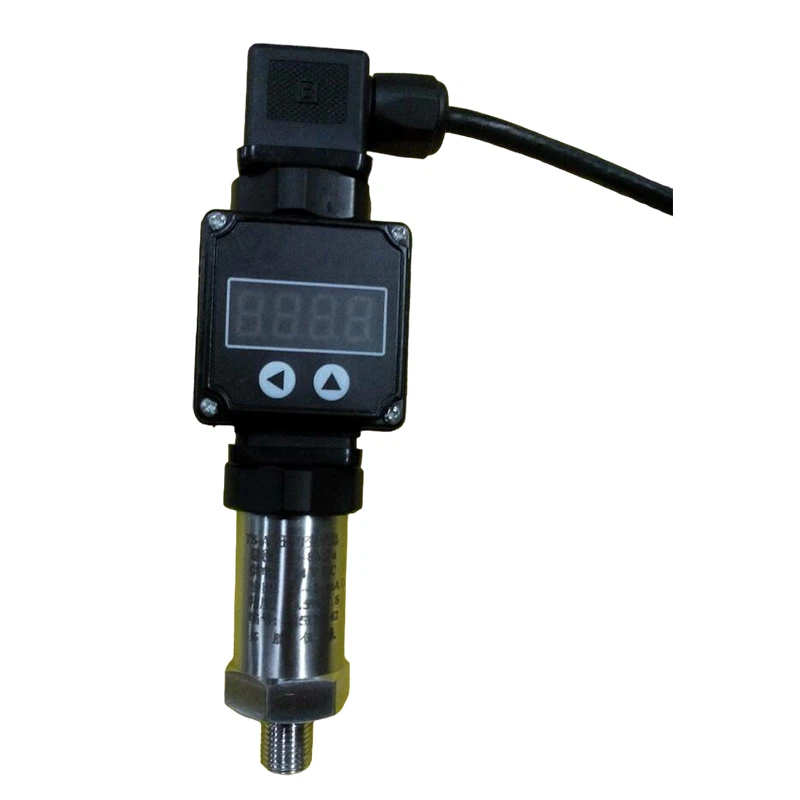

A pressure transmitter with a display is a device that converts pressure into standard electrical signal output, while also possessing the function of displaying pressure values. It utilizes high-precision and high-stability sensor chips, converting them into a 4~20mA standard electrical signal output through a signal conditioning circuit. It is equipped with an LED digital display or a liquid crystal display, enabling a visual display of pressure values. The pressure transmitter with a display can be widely applied in industries such as pharmaceutical, chemical, water conservancy, and machinery, for measuring the pressure of liquid, gas, and other media. It can also convert pressure signals into electrical signals and output them to control systems or display devices, thus achieving pressure control and monitoring.
Technical Parameters
| Measurement Range | Gauge Pressure 0～2kpa～60Mpa, Negative Pressure -100kpa～1.0Mpa, uid Level) 0～10 meter～100 meter | Storage Temperature | -40～+125℃ |
| Output | 4~20mA DC, Two-Wire System | Overload Limit | 1.5～3 times the rated measurement range |
| Accuracy | O.25%F.S or 0.5%F.S | Relative Humidity | Less than 95% |
| Power Supply Voltage | 12～36V DC | Load Resistance | Not more than 750Ω |
| Stability | Better than ±0.2%FS per year | Installation Position | No impact |
| Mechanical Protection | IP65 | Explosion-proof performance of the instrument meets the requirements of ExiaⅡCT6 Gb | |
| Operating Temperature | -20～+80℃ |
 |
|
