Products Description

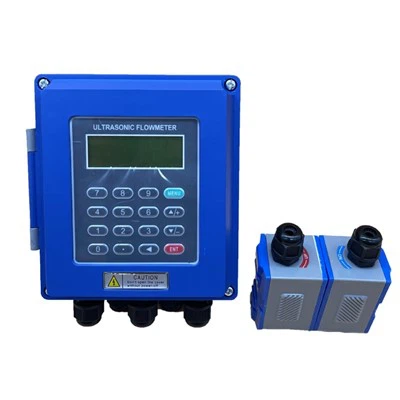

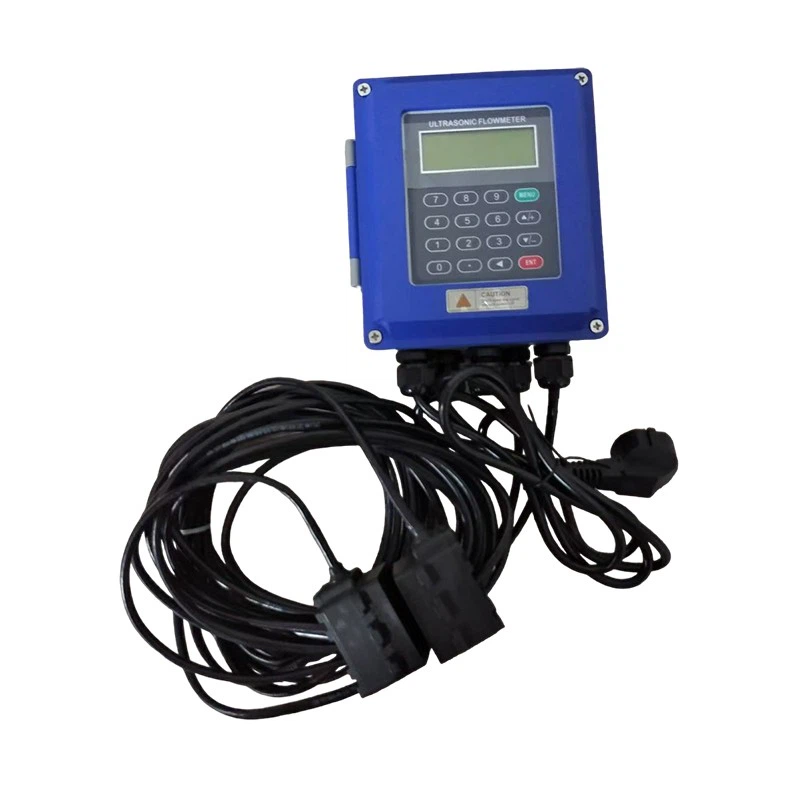

A fixed ultrasonic flowmeter is a type of flowmeter that uses ultrasonic waves to detect the flow state of fluids. It usually consists of ultrasonic sensors and host equipment. Ultrasonic sensors can measure the flow velocity and flow rate of the fluid through ultrasonic measurement, and transmit these parameters to the host equipment for processing and display. The product adopts a windowed software design, where all input parameters, together with setting and displaying measurement results, are subdivided into more than 100 independent window representations. Users can access specific windows to achieve the purpose of inputting parameters, modifying settings, or displaying measurement results. The windows are numbered with two digits (including the+sign), ranging from 00 to 99, followed by+0,+1, and so on. Window number, also known as window address code, represents a specific meaning.
Technical Parameters
| Measurement accuracy | 1%; | Display | 2x10 Chinese character backlight display (bilingual Chinese and English can be selected); |
| Working power supply | isolated DC8-36V or AC85-264V; | Operation | 16 button or 4 button windowing operation; |
| Power consumption | Working current 50mA (without connecting the keyboard and buzzer); | Other functions | Automatic memory of the first 512 days, first 128 months, and the first 10 years of positive and negative net cumulative flow, automatic memory of the first 30 times of power on and off time and flow, and can be automatically or manually added, and can be read out through the MODBUS protocol; |
| Optional output | 1. RS485 output for brick isolation; 1 isolated 4-20mA or 0-20mA output (active or passive optional); Optional Hart protocol; Dual isolated OCT output (programmable OCT1 pulse width between 6-1000ms, default 200ms); One bidirectional serial peripheral universal interface, which can directly connect multiple external devices such as 4-20mA analog output boards, frequency signal output boards, thermal printers, data recorders, etc. in series; | Flow sensors | external, plug-in, and segmental; |
| Optional inputs | Three 4-20mA analog input circuits; | Instrument size | (see user manual for details) |
