putting-into-type liquid level meter

Pressure transmitters are the most commonly used sensors in industrial practice, mainly including gauge pressure, absolute pressure, differential pressure, etc. Gauge pressure refers to the pressure based on the atmosphere, which is less than or greater than atmospheric pressure; Absolute pressure refers to being higher than absolute pressure based on the zero position of absolute pressure; Differential pressure refers to the difference between two pressures. According to the type of sensor, it can generally be divided into capacitive pressure transmitters, diffusion silicon pressure transmitters, and monocrystalline silicon pressure transmitters. In general, a pressure transmitter is mainly composed of three parts: a pressure measuring element sensor (also known as a pressure sensor), a measurement circuit, and process connectors. It can convert the physical pressure parameters of gases, liquids, etc. sensed by pressure sensors into standard electrical signals (such as 4-20mA, etc.), which are transmitted to secondary instruments such as indicator alarms, recorders, regulators, etc. for measurement, indication, process adjustment, and control.

Products Description

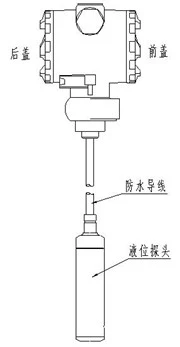

Structural diversity, depending on the usage site, cable type, gas collection type, hard rod type, and anti-corrosion type can be selected; Solid state structure, no movable parts, high reliability, long service life, capable of measuring water, oil, chemical raw materials, etc., unaffected by foaming, deposition, and electrical characteristics of the measured medium; Directly put into the tested medium, installation and use are quite convenient; Made with isolated diffused silicon sensitive components, after temperature compensation and linear correction, converted into 4-20mADC or RS485 communication output, convenient for connection with PLC and automatic control system; The transmitter (display head) can be fixed with threads, flanges, or brackets for easy installation and use.

FAQ：

1.Q:What's the shipping method?

A:By express way, such as Fedex, DHL, TNT and so on; by air; by sea. Shipping cost is decided by shipping ways& product actual weight &volume and your detailed address.

2.Q:What's the Payment method?

A: We support various payment way(T/T, Visa card, Western union, Moneygram, Secure payment-Escrow, etc.) T/T

3.Q:Can we print our own brand or logo on your products?

A: Yes, it is our pleasure to be one your OEM manufacturer in China to meet your OEM request

4.Q: Why do some goods have difference between website picture and practical items?

A: Because difference of light and browser, also different batches, material may be little difference. If any question, please tell us before order and ask clearly.

Due to the different prices of precision instruments made with different parameters, we need you to provide our sales team with more detailed instrument parameters, which will be beneficial for us to provide you with prices and appropriate discounts

Technical Parameters

Working temperature：	0℃～100℃;	Power supply voltage:	24VDC;
Measurement range:	0-0.1米～0-35米;	Load resistance:	≤500Ω;
Maximum overload:	Not exceeding the length of the gas collection pipe;	Measurement medium:	High temperature liquid;
Measurement form:	Balance hood;	Long term stability:	± 0.2% F · S/year
Accuracy level:	0.5%F·S;	Relative humidity of the environment:	0～95%;
